Al-Mg-Mn Alloy 3004 Aluminum Siding Coil For Curtain Wall
3004 series alloy (Al-Mn-Mg system) that undergoes surface cleaning, chemical pretreatment,
and coating application (typically with high-performance PVDF fluorocarbon or polyester paints)
followed by high-temperature curing.
Primarily used for:
-
Curtain walls (weather-resistant, UV-proof)
-
Roofing systems (lightweight, corrosion-resistant)
-
Architectural decoration (versatile colors/finishes, easy fabrication)
Key Characteristics of 3004 Aluminum Coil
3004 is an Al-Mn-Mg series alloy (typically supplied in H34/H44 tempers) that, when color-coated,
exhibits:
Mechanical Properties
Tensile strength: 180-240 MPa (H34 temper reaches ≥240 MPa)
Elongation: ≥8% (H34), excellent for stamping and forming
Corrosion Resistance
Mn and Mg elements enhance atmospheric/rain corrosion resistance
Formability
Excellent bendability and deep-drawing capability for complex facade shapes
2 kinds export forms
coil and sheet , we can produce 1800mm ultra-wide at most for the coil.

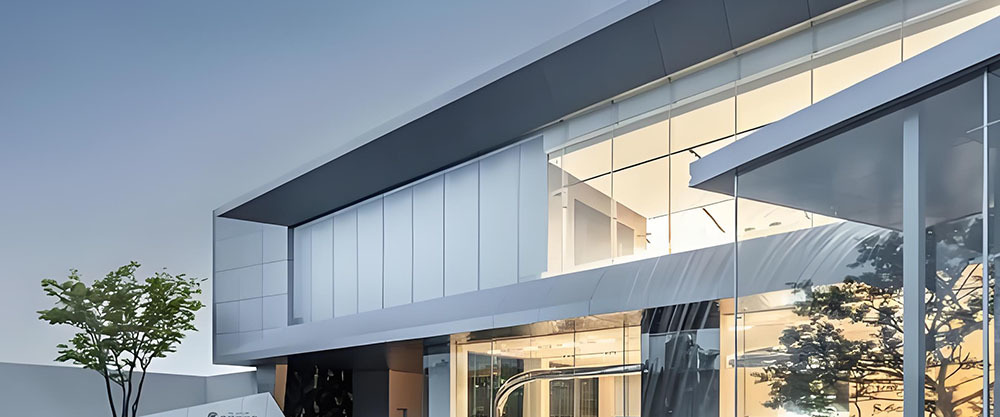

Performance Advantages for Curtain Walls
Lightweight
Density: 2.7g/cm³ (65% lighter than steel), reducing structural loads
Aesthetic Flexibility
Custom PVDF colors (metallic, woodgrain effects) with UV resistance (ΔE<3 after 15 years)
Weather Resistance
Stable performance across -40℃ to 80℃ with no cracking/deformation
Cost Efficiency
Lower lifecycle cost vs stainless steel/zinc; minimal maintenance (cleaning only)
Notable Project Applications
✅ Skyscrapers: Shanghai World Financial Center (decorative elements)
✅ Airports: Beijing Daxing Airport (curved sunshades)
✅ Commercial Complexes: Parametric facade systems
Production Range
| Thickness Range | 0.20 - 5.0mm |
| Width Range | Max. 2700mm |
| Alloy | 1050,1060, 3003, 3004,3105,5052 |
| Paint System | PE, SMP, PVDF |
| Color Options | RAL color or as the sample |
Company Advantages

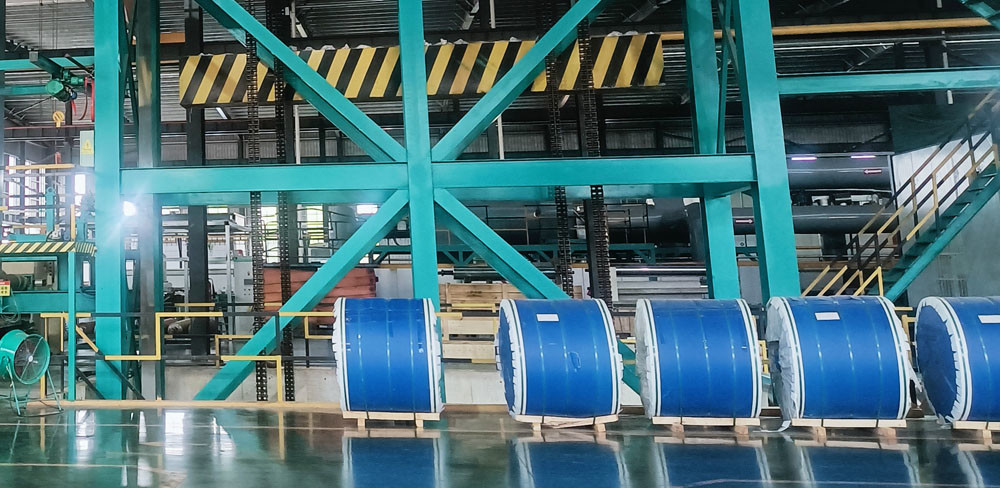

Advanced Equipment
• German SMS Group fully automated coating lines with ±0.01mm thickness precision,
Line Speed: 120m/min (20% faster than industry average data)
• MES system enables real-time production monitoring with ≥99.3% product qualification rate
• Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
Technology Patents
♦ Anti-Static Color Aluminum Coil and Continuous Production System
♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
♦ Production Process for High Solar-Reflectance Color Aluminum Coils
♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
♦ Low-Temperature Curing Technology
|
|
