PVDF Brushed Surface Coated Aluminum Coil for High-rise Building Facades
PVDF Brushed Aluminum Coil refers to a high-performance decorative aluminum material
featuring a mechanically brushed surface texture and polyvinylidene fluoride (PVDF) coating.
The product combines three essential technical dimensions:
♦ Base Material
Utilizes aluminum alloy coils (typically 3003/5005 grades) with 0.2-3.0mm thickness
♦ Surface Treatment
a) Brushing Process:
Mechanical abrasion creates directional grain patterns (straight/cross/random)
with controlled roughness (Ra 0.4-1.6μm)
b) Coating System
Multi-layer protection comprising:
① Conversion coating (chromate/chromium-free)
② Primer (epoxy/polyester)
③ Topcoat (70% PVDF fluoropolymer)
Key Advantages
1. Superior Durability
a) Long-lasting finish – Highly resistant to fading, chalking, and weathering, even in harsh
environments.
b) Strong protection – Resists scratches, chemicals, and corrosion, maintaining appearance
over time.
2. Premium Aesthetic Quality
a) Elegant brushed texture – Offers a sophisticated metallic look with customizable patterns.
b) Rich color options – Available in a variety of metallic and matte finishes to suit different design styles.
3. Lightweight & Easy to Install
a) Reduces structural load – Much lighter than stainless steel or solid metal panels.
b) Simplifies fabrication – Can be easily cut, bent, and formed for various architectural applications.
4. Low Maintenance
Stays cleaner longer – Resists fingerprints, stains, and dirt buildup.
Perfect for :
✔ Modern building facades
✔ Luxury interiors & furniture
✔ High-end appliances & transportation
Coating Thickness Selection Guide
| Grade | Thickness | Applications | Key Features |
| Economy | 15-20μm | Interior decoration | Cost-optimized basic protection |
| Standard | 20-25μm | Architectural curtain walls | AAMA 2603 certified |
| Enhanced | 25-30μm | Coastal/industrial areas | Meets AAMA 2605 standard |
| Premium | ≥30μm | Extreme environments | 6000+ hours salt spray resistance |
Company Advantages
Advanced Equipment
• German SMS Group fully automated coating lines with ±0.01mm thickness precision,
Line Speed: 120m/min (20% faster than industry average data)
• MES system enables real-time production monitoring with ≥99.3% product qualification rate
• Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
Technology Patents
♦ Anti-Static Color Aluminum Coil and Continuous Production System
♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
♦ Production Process for High Solar-Reflectance Color Aluminum Coils
♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
♦ Low-Temperature Curing Technology
|
|

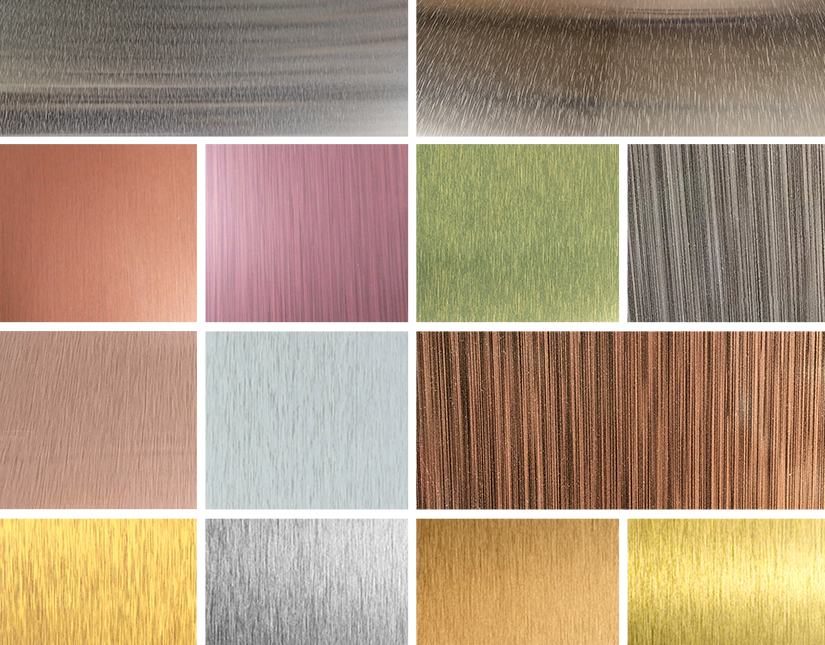

PVDF Brushed Surface Coated Aluminum Coil for High-rise Building Facades Images
|
