Brand Name : JERO
Model Number : JA69
Certification : IATF 16949 DNV LR NK
Place of Origin : CHINA
MOQ : 8 TONS
Price : 3300-3600USD/TON
Payment Terms : L/C,T/T,Western Union
Supply Ability : 3400 TONS PER MONTH
Delivery Time : 25-30 WORKING DAYS
Packaging Details : STANDARD EXPORT PACKAGES
Type : Aluminum plate
Standard : ASTM B209/AMS 4152
Alloy : 6082
Temper : t6 / t651 / h112/ O
Thickness : 6.0-260mm
Trade terms : FOB,CIF,CNF, EXW

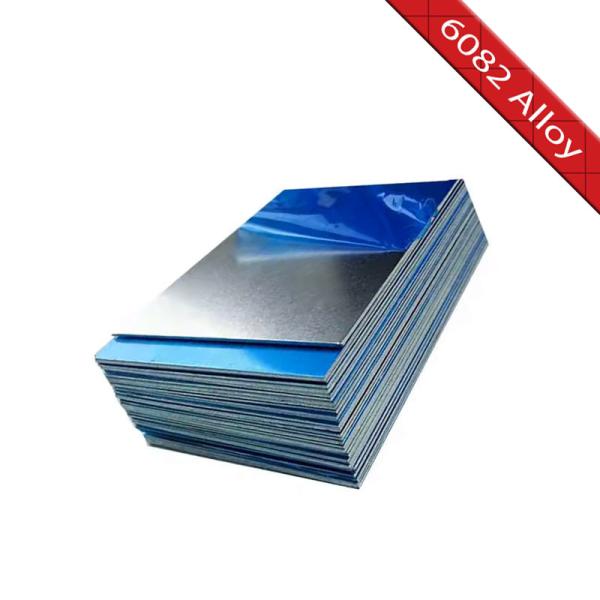

6xxx series 6082 Aluminum Alloy Sheet 5x10 Aluminum Sheet
As a premium structural alloy in EN 573-3 standards, 6082 combines optimal strength, workability
and cost-efficiency for demanding engineering applications. Its balanced properties make it
particularly dominant in European transportation and industrial sectors.
Key Properties
Composition: Al-Mg-Si alloy with Mg (0.6-1.2%), Si (0.7-1.3%), and Mn/Cr for enhanced strength
Mechanical Properties
Tensile strength: ≥310 MPa (T6), ≥260 MPa (T4)
Elongation: ≥10% (T6), ≥14% (T4)
Hardness: ~95 HB (T6)
Heat Treatment: Responds well to T4 (solution) and T6 (solution+aging)
Corrosion Resistance: Moderate - requires surface protection for harsh environments
Weldability: Good, but requires post-weld heat treatment to restore strength
Common Tempers
Temper | Treatment | Characteristics |
T4 | Solution treated + naturally aged | High formability |
T6 | Solution + artificially aged | Peak strength |
O | Annealed | Maximum softness |
Key Advantages
✔ High strength-to-weight ratio (60% lighter than steel)
✔ Excellent machinability and surface finish quality
✔ Cost-effective alternative to 7xxx series
Typical Thicknesses
Transportation: 2-10 mm
Machinery: 5-50 mm
Construction: 1-6 mm
Electronics: 0.5-3 mm
Main Applications
♦ Transportation: Rail car structures, truck frames
♦ Industrial: Hydraulic systems, robotic frames
♦ Construction: Load-bearing trusses, bridges
♦ Aerospace: Drone components
Comparison with Similar Alloys
Property | 6082 | 6061 | 7075 |
Strength | High | Medium | Very High |
Corrosion | Moderate | Moderate | Poor |
Machinability | Excellent | Excellent | Good |
Cost | Mid-range | Low | High |
Our company advantages
Technological & Production Strengths:
R&D Capabilities: Own a national-level corporate technology center and contributes to industry
standards.
Production Scale: We had an annual capacity exceeding 1 million tons of aluminium large-scale
rolling mills.
Production Ability: We can produce the great Aluminum material for automobile, railway transportation,
marine, aerospace etc fields, and obtained the relevant certification.
Our factory own the world advanced equipments, include:
Code | Name | Brand |
A | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
B | 4 continuous hot rolling mills | SMS Group (Germany) |
C | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
D | all automatic three-dimensional elevated warehouse | Dematic (USA) |
![]() |
6xxx series 6082 Aluminum Alloy Sheet 5x10 Aluminum Sheet Images |
